Are all Lionel prewar couplers compatible?

Last Updated on January 25, 2023 by Dave Farquhar

Lionel changed its coupler designs several times in the prewar era. That leads to a fair question. Are all Lionel prewar coupler types compatible? Can you use the different types together? As always, the answer is, it depends.

The two most common types of Lionel prewar couplers are compatible with each other. But the two later types are not directly compatible with the tab-in-slot coupler, though there are a couple of tricks that can help you.

Lionel prewar coupler types

Lionel produced three major coupler types in the prewar era.

Tab in slot or hook coupler

are Lionel prewar couplers compatible?

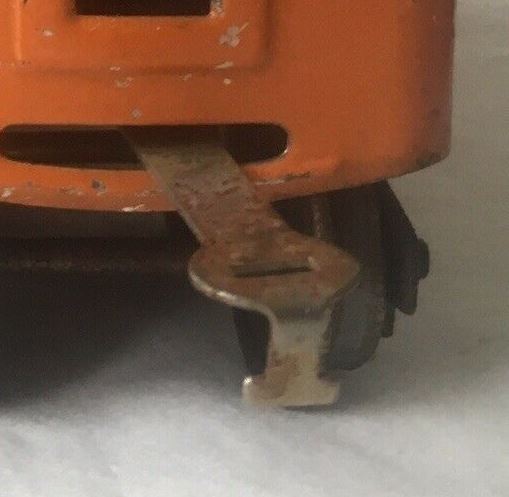

Are all Lionel prewar couplers compatible? This tab-in-slot coupler Lionel used in its early cars and in some cheaper sets isn’t, though it’s compatible with many other makers’ similar couplers.

Lionel used a tab in slot or hook coupler in its earliest sets and in some cheaper 1930s sets. These couplers are virtually identical to everyone else’s hook couplers, and they’re all compatible as long as the cars sit at about the same height. They’re even compatible with Ives‘ automatic coupler. The tab fits into a slot in the Ives coupler. As much as Lionel said it valued backward compatibility, Ives actually did a better job with it.

All of the manufacturers tended to vary the sizes of their cars somewhat during the prewar era. These size variances can cause issues with interoperability. But as a general rule, usually if the cars are similar size, they’ll usually work together. And sometimes they work together even if they look a bit awkward when strung together.

This coupler type is not compatible with later prewar couplers, with one exception. To use these couplers with the other types of prewar Lionel couplers, you have to know a trick.

Lionel combination coupler

Are all Lionel prewar couplers compatible?

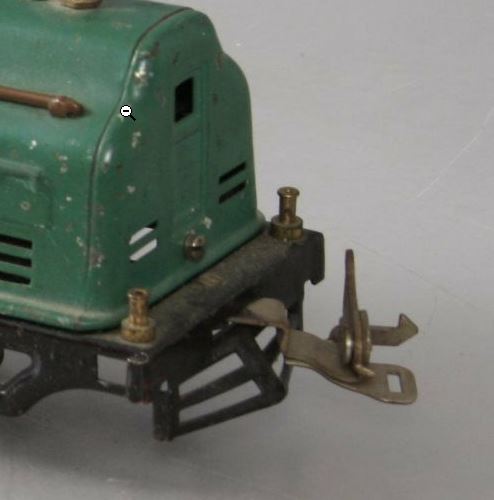

Lionel put this combination coupler on some of its engines so it could pull either type of car.

For a time in the 1930s, Lionel produced a combination coupler. This coupler has a hook and latch on it to work with the later automatic couplers, but it also has a slot in it to accommodate the tab in a tab-in-slot coupler. Lionel put these couplers on engines so they could pull both types of cars, and Lionel made this type in both Standard Gauge and O Gauge sizes. Be careful when shopping for these to get the right size.

Lionel only used these couplers on engines, but there’s nothing to say you have to. You can mount this coupler on a regular car to give it the ability to connect with either type. You can’t couple a tab-in-slot coupler directly to the late prewar box coupler. But you can put this coupler on one or both ends of a car and use that as a universal car that can accommodate the other two Lionel types, since both a box and a tab-in-slot coupler can connect up with a combination coupler.

The shank on these couplers is pretty long, since they’re intended to mount to an engine, not a freight car. You can drill another hole in the shank to shorten it up for use on a freight car. Then the train won’t look quite as awkward, with uneven distance between your cars.

I’ve talked before about building up cars to couple dissimilar types.

Lionel latch coupler

Lionel’s latch coupler was intended to allow automatic operation. The latch pushes into a spring-loaded mechanism that grips it automatically. The problem is that you have to line them up beforehand, since they can swivel on the rivet holding them to the car. Everyone else had this problem with their automatic couplers too, so usually the only automatic thing about them was the frustration.

The latch coupler looks just like the combination coupler, just without the slot on the end. Of all the Lionel prewar coupler types, this one is probably the most common.

Lionel box coupler

Are all Lionel prewar couplers compatible?

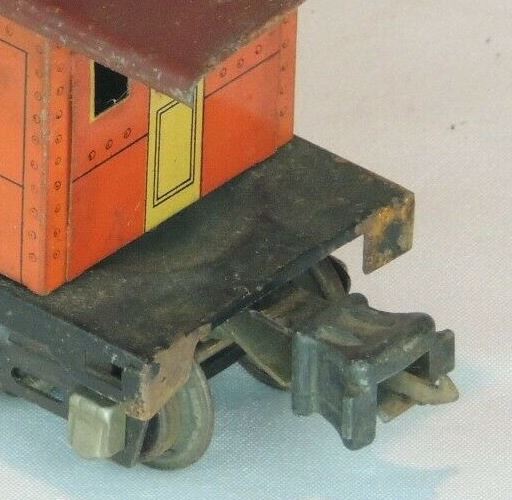

Lionel’s box coupler solved the problem of automatic operation while retaining backward compatibility with the earlier latch coupler type.

With the box coupler, Lionel finally solved the problem of automatic coupling and decoupling by mounting the coupler to the truck, rather than the car. This allowed the coupler to pivot around curves, but the truck holds it stationary enough for it to couple. The box coupler even works on curves, for the most part.

The box coupler still uses a latch mechanism, but the latch grips onto a recess in the box, instead of a spring-loaded pivot.

The box coupler allowed Lionel trains to finally deliver on the promise of the three-position e-unit, at least for the coupling part. Between the box coupler and the e-unit, it was possible to build up a consist the way real railroads did it, by backing the rest of the train into a car and letting inertia couple them together. This gave the trains play value once kids tired of just watching trains go in circles all the time.

This is another very common Lionel prewar coupler type.

Lionel prewar coupler compatibility with postwar cars

Lionel famously hesitated to release a knuckle coupler because it didn’t want to introduce an incompatibility with its other coupler types. World War II halted train sales for about four years, so that gave Lionel the opportunity to make a change. But when they did, they released two little-known adapters to make their new trains compatible with the old.

Believe it or not, this means you can even couple Lionel box couplers with postwar and modern-era Lionel knuckle couplers, with an adapter. Using a TT-100 adapter, you can couple Lionel 600 and 2600-series cars to knuckle couplers. The TS-162 adapter lets you do the same with Lionel 800 and 2800-series cars. This lets you mix prewar and postwar cars in a consist, or use a postwar engine to pull prewar cars without having to find a prewar tender or convert a tender to prewar trucks and couplers. Here are some hints for installing and using a TT-100 and TS-162.

If you found this post informative or helpful, please share it!

2 thoughts on “Are all Lionel prewar couplers compatible?

  • October 30, 2020 at 10:44 am

    Great information. I have a prewar lionel 1666E and the tender has a box coupler on the back.i want to couple it to lionel NYC post war hoppers with knuckle couplers. They are black and i need to look but i believe they are 2600 series.can u tell me where to find these adapters? thanks.

    • November 1, 2020 at 3:43 pm

      You can use the links in the blog post, those will perform Ebay searches for the parts. I don’t know any other reliable way to get them, sorry.
