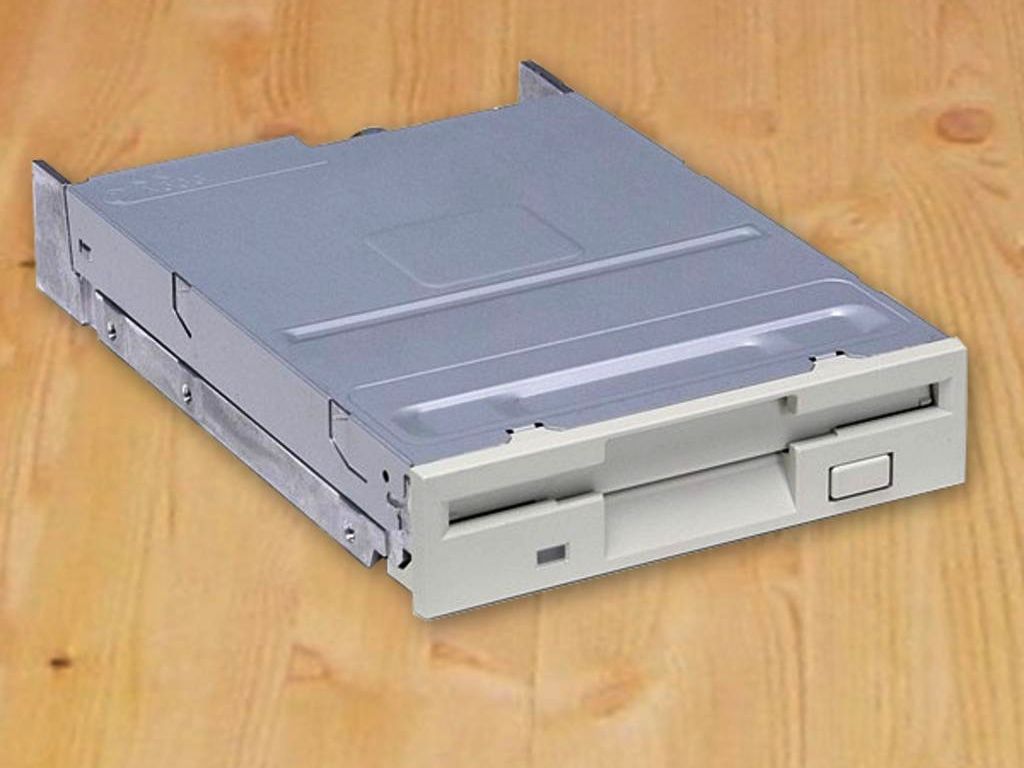

There doesn’t seem to be a lot of information out there about how to fix 3.5-inch floppy drives, especially the 1.44 megabyte format that was a fixture in PCs for nearly 20 years. Maybe everyone knows how to do it, but that won’t be true forever. In this blog post, I’ll record the secrets of fixing this enduring storage format, before they get lost to time.
Open the top
The first step is opening the drive enough that you can get to the mechanical parts. On most drives, the top cover is just a friction fit. Slide a small screwdriver under the tabs and the cover usually lifts off. On older drives, sometimes there are screws, but this is fairly unusual.
Once you take off the top, you can see the drive head assembly, the worm gear, and other mechanical parts. This is a good time to blow out any dust with a blast of compressed air. This will make the next steps easier.
Clean the heads
The next order of business is cleaning the heads. If the drive heads are fouled with dirt or old magnetic particles, it won’t read disks reliably. A cotton swab with 91% isopropyl alcohol is fine for this. A few swipes with a cotton swab, followed by an inspection to make sure you didn’t leave any strands behind is usually enough.
Clean and lubricate the worm gear
The grease on the worm gear is frequently no longer doing its job after so many decades. If the floppy drive doesn’t seek, or makes tons of noise, the worm gear is a common cause.
Isopropyl alcohol on a cotton swab can be effective cleaning off the old grease and dirt, but mineral spirits is better if you have any. Apply the solvent to a cotton swab, then clean off the old grease and dirt until you see shiny metal. Then apply a small amount of new silicone grease, or another plastic-safe grease, to the gear. It doesn’t take a lot. Apply just enough that you can see there’s some there. If you can see the grease it probably means there’s too much, but using the drive will distribute that excess to the parts you can’t see.
Servicing the stepper motor in a 3.5 inch floppy drive
Frequently after doing this, the drive still doesn’t seek. Give the stepper motor on the back of the drive, next to the power and data connectors, a few taps with the blunt handle of a screwdriver. Don’t go wild on it. Just give it a few taps, with comparable force as you’d use if you were clapping your hands. This bit of gentle percussive maintenance will usually loosen the motor up so it will seek again.
What not to do, at least not at first
Clean and tap the drive before you disassemble it and replace capacitors indiscriminately. Caps can go bad on floppy drives, but on PC floppy drives that won’t seek, the problem is more often mechanical than electronic.
